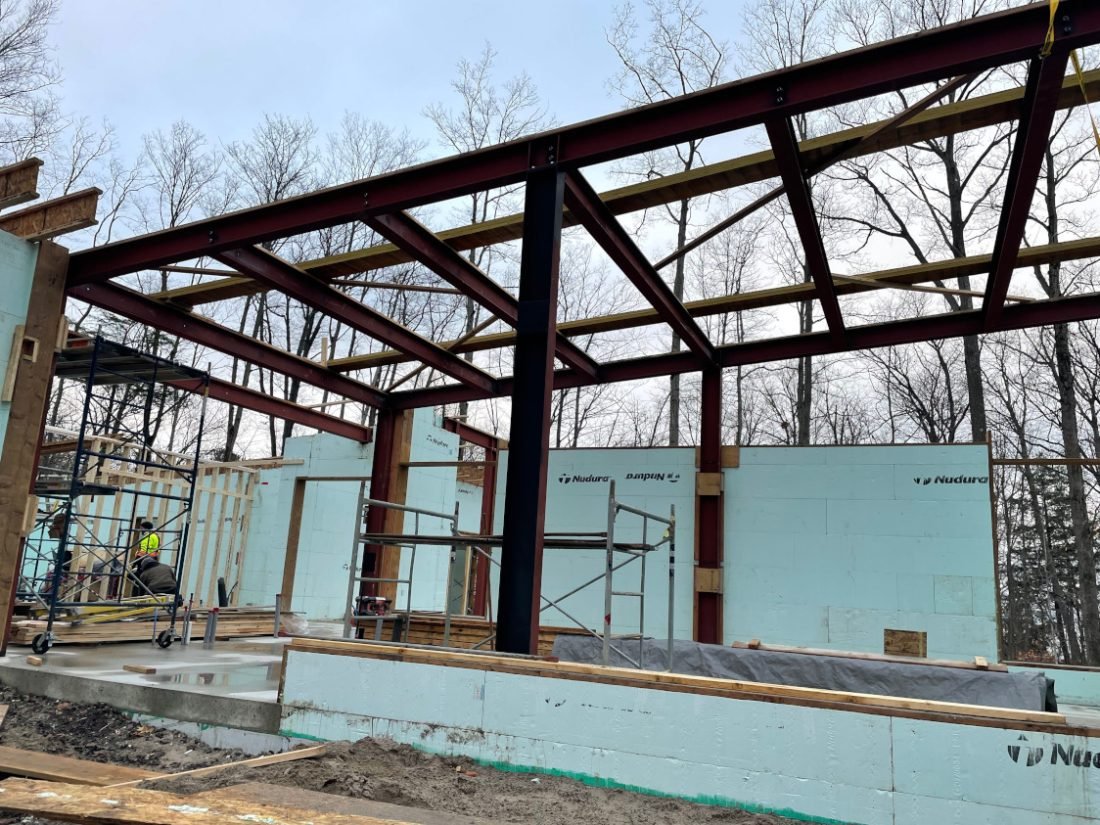

ICF Design Challenges

The main real design challenges are: (1) Thicker walls (335mm overall for 8″ core ICF vs 235mm wood frame); (2) Window and door openings fixed at the pour (changes after concrete cures require concrete saw work); (3) Curves and angles need extra planning (orthogonal designs are easiest); (4) Cantilever spans need engineering beyond 600-900mm; (5) Roof-to-wall integration needs careful detailing for air-sealing; (6) Moisture management is critical below grade and proper vapour control above grade; (7) Renovations are harder than wood frame; (8) Electrical and plumbing must be planned ahead; (9) Aesthetic perception (less of an issue in 2026); (10) Installation mistakes are more expensive than in wood frame.

For a typical Ontario residential build (1,800-2,400 sq ft footprint, 8″ ICF core vs 2×6 wood frame), the floor space difference is approximately 1-3% of total interior area — about 24-60 sq ft. Not the "5-6% / 100-150 sq ft" sometimes claimed in marketing. Easily absorbed in design by adding the wall thickness to the gross building footprint so net interior dimensions match your target.

Yes but at significant cost. Adding or relocating a window after the pour requires structural engineering review, concrete saw cutting, lintel modification, and waterproofing detail at the new opening. Typical cost: $1,500-$4,000 per modified opening depending on size and complexity. The right approach is to triple-check window and door schedules before the pour, or install extra "maybe later" bucks during stacking that cost almost nothing to add and very little to use or fill in later.

Not strictly. Modest cantilevers up to 600-900mm (2-3 ft) are routine in OBC Part 9 prescriptive design for typical residential. Cantilevers up to 1.2m (4 ft) require standard structural engineering review per CSA A23.3. Longer cantilevers require dedicated engineering with potentially supplementary steel. ICF actually has cantilever advantages over wood frame for moderate spans because the concrete provides excellent resistance to bending.

For Ontario’s cold climate, vapour control goes on the warm (interior) side per OBC SB-12. Standard 6-mil polyethylene on the inside face of the ICF wall under drywall. The EPS foam on the exterior is the air barrier and continuous insulation. Don’t install a second vapour barrier on the exterior — that would trap moisture inside the wall assembly. Below-grade walls use exterior waterproofing membrane (different from a vapour barrier) plus drainage board plus weeping tile.

No — this is a common misconception. ICF has FAR LESS thermal bridging than wood frame. Wood frame walls lose 15-25% of nominal R-value to thermal bridging through studs (wood is R-1 per inch, far below the surrounding R-3.5/inch batt insulation). ICF has continuous EPS foam on both faces with no studs penetrating through; polypropylene web ties are poor heat conductors and don’t create meaningful bridges. Where thermal bridging CAN occur in any construction is at slab/wall and roof/wall junctions — these need continuous insulation regardless of wall system.

Interior partition walls inside an ICF home are still wood frame and modify normally. Only changes to the structural ICF perimeter walls (or any ICF interior load-bearing walls) involve concrete work. Concrete saw work costs $80-$150 per linear foot of cut. ICF is best suited for owners who plan to keep the floor plan as designed; for high-renovation-frequency projects, ICF foundation + wood-frame above-grade is a more flexible compromise.

In 2026, yes — this is rarely an issue. Ontario inspectors have widely seen ICF construction across the province. OBC Part 9 prescriptive tables explicitly cover ICF foundation and above-grade walls. Inspector unfamiliarity was a real issue 10-15 years ago when ICF was less common, but is rare today. Most municipalities have inspected dozens or hundreds of ICF projects. Bringing CCMC evaluation reports and manufacturer specs for the specific brand being used is standard professional courtesy, not crisis management.

Honest situations where ICF may not fit: (1) Very tight budgets with no payback horizon — the 3-8% cost premium needs time to recover via energy/insurance savings; (2) Ultra-curved architectural designs dominated by rounded geometry — ICF cost premium for curves is significant; (3) Projects requiring frequent renovation — wood frame remains more flexible; (4) No experienced ICF contractor available — ICF without experienced labour is the worst of both worlds; (5) Pure speculation builds where the target buyer won’t value the ICF upgrades. For most Ontario custom home builds, ICF is a genuinely strong choice.

Almost always: installation mistakes by inexperienced labour. Wall blow-outs during the pour (caused by insufficient bracing or full-height continuous pours instead of 4′ lifts), out-of-plumb walls (caused by premature bracing removal or poor first-course alignment), and waterproofing failures (caused by skipping or under-applying exterior membrane) are the recurring themes. None of these are ICF problems — they’re experience problems. Hiring installers with documented experience (NUDURA Trained Installer, AMVIC Installer Card, or equivalent certification) prevents the vast majority of these failures.
