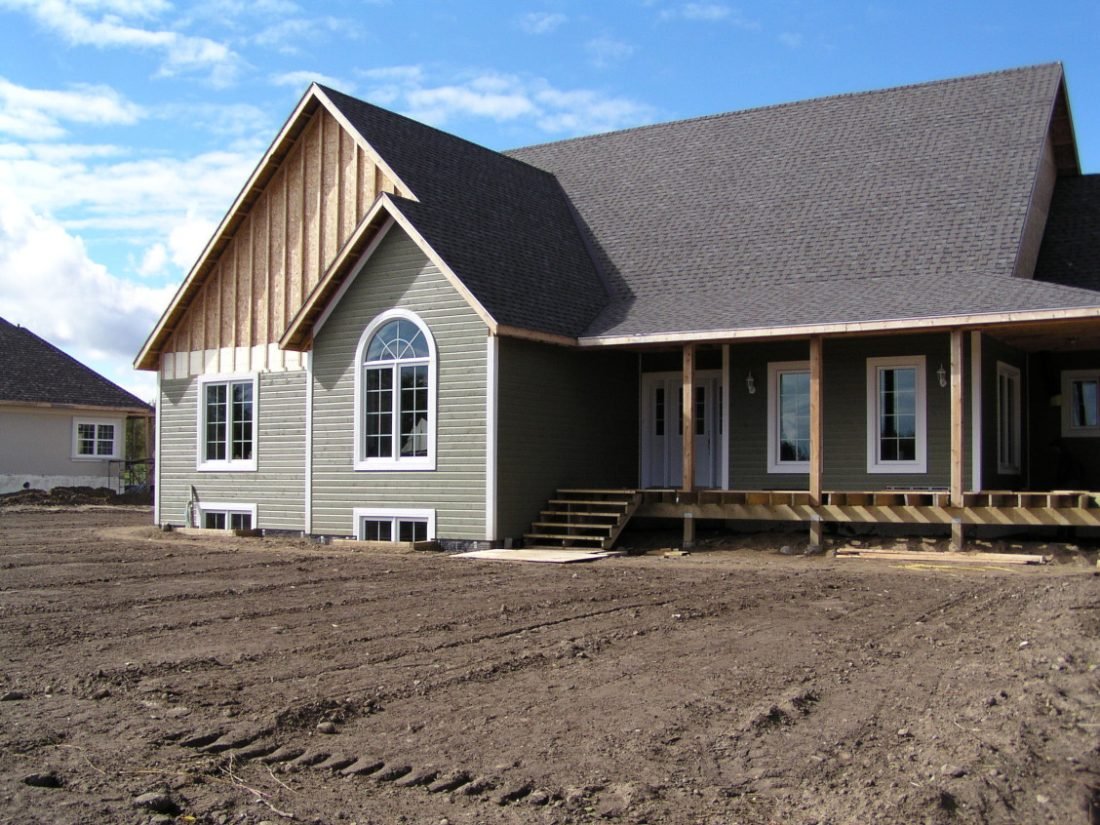

ICF Lot Grading
ICFpro.ca · Site Drainage & Lot Grading for ICF
ICF Lot Grading 2026: Ontario Site Drainage & Waterproofing Guide
Lot grading is where most basement water problems start. Get the slope wrong, skip the dimple membrane, backfill too soon, or ignore the lot grading certificate — and you’ll spend years fighting moisture in a structure that should have been dry from day one. This guide covers Ontario lot grading for ICF construction: slope requirements per OBC 9.12 and 9.14, drainage tile and waterproofing standards, regional soil considerations (Tiny Township sand, GTA clay, Canadian Shield bedrock), and the lot grading certificate workflow most Ontario municipalities require. Written from 30 years of pouring ICF in Ontario since 1995 (300+ projects).
OBC 9.12 & 9.14 compliant
Regional Ontario soils
Lot grading certificate
Metric specifications
ICF lot grading in 30 seconds
Ontario lot grading for ICF follows the same fundamentals as any residential build: positive slope away from the foundation (minimum 2% over the first 1.8m per OBC 9.12), perimeter drainage tile at footing level (per OBC 9.14), waterproofing membrane on below-grade walls, dimple drainage board, and a minimum 150mm clearance from finished grade to top of foundation wall. ICF-specific consideration: foam is closed-cell and water-resistant but NOT waterproof — the membrane is what keeps your basement dry.
- OBC slope requirement: Minimum 2% slope (50mm fall over 2.4m) away from foundation for first 1.8m, per OBC 9.12.2.2. Steeper than 7% creates erosion concerns.
- OBC clearance requirement: Minimum 150mm clearance between finished grade and top of foundation wall, per OBC 9.15.4.3. Burying ICF foam invites pests and moisture wicking.
- Drainage tile requirement: Foundation drainage system required per OBC 9.14, typically 100mm perforated pipe in 19mm clean drainage stone bedding, sloped to discharge.
- Lot Grading Certificate (LGC): Required by most Ontario municipalities at permit and pre-occupancy, prepared by an Ontario Land Surveyor (OLS) verifying grade compliance with the approved site plan.
2% min
OBC slope requirement first 1.8m from foundation
150mm
Minimum clearance grade to top of foundation wall
100mm
Perforated drainage tile at footing level per OBC 9.14
7+ days
Cure time before backfill for concrete design strength
Why Lot Grading Matters for ICF Specifically
ICF construction handles water better than wood frame in nearly every way that counts: concrete walls don’t rot, foam doesn’t grow mould, and the EPS panels are closed-cell water-resistant material. But there’s a critical distinction homeowners and even some contractors miss:
EPS foam is water-resistant, not waterproof.
Closed-cell EPS used in ICF blocks resists water absorption and doesn’t support mould growth. But sustained hydrostatic pressure or persistent saturated soil contact will eventually find paths through the foam joints, around penetrations, and at the foundation-to-footing interface.
The waterproofing membrane is what makes your basement dry — not the foam itself. Lot grading is what reduces the water load the membrane has to handle. Get grading and waterproofing both right and your basement stays dry indefinitely; skip either and you’ll eventually have problems regardless of how good the ICF blocks are.
The other reason lot grading matters specifically for ICF: the 150mm minimum clearance from finished grade to top of foundation wall (per OBC 9.15.4.3). Burying the EPS panel where wall meets grade invites moisture wicking up the foam, frost heave damage, and pest entry. Wood-frame foundations have a foundation wall above grade made of poured concrete or block; the wood frame starts above that. ICF foundations have foam right at the grade line if you don’t maintain the 150mm clearance — which is where problems start.
OBC 9.12 and 9.14 Requirements
The 2024 Ontario Building Code (O. Reg. 163/24) addresses lot grading and foundation drainage in two main areas. These apply equally to ICF and conventional construction:
OBC 9.12 — Excavation, dampproofing, and waterproofing
- 9.12.2 Grading: The finished grade around a building shall slope away from the foundation walls. Minimum slope is 2% over the first 1.8m (50mm drop over 2.4m, or 6″ over 8′).
- 9.12.3 Damp-proofing: Required on the exterior of foundation walls below grade. For ICF construction, the integrated waterproofing membrane application typically satisfies this.
- 9.12.4 Waterproofing: Required where the foundation will be subjected to hydrostatic pressure (e.g., high water table, perimeter drainage failure conditions). More robust than damp-proofing — designed to resist water under pressure.
OBC 9.14 — Drainage
- 9.14.2 Foundation drains: Required around foundations where the basement floor is below grade. Typically a 100mm perforated drainage tile at footing level, surrounded by clean drainage stone (typically 150mm of 19mm gravel), connecting to a sump pit or discharge to daylight.
- 9.14.3 Drainage discharge: Must connect to a storm sewer, sump pit, or appropriate point of discharge. Cannot discharge to sanitary sewer.
- 9.14.4 Lot drainage: Surface water from roof, driveway, and lot must be directed away from the building and not onto adjacent properties.
OBC clearance from grade to top of foundation wall (per OBC 9.15.4.3): A minimum of 150mm clearance is required between finished grade and the top of any below-grade foundation wall. For ICF construction this is non-negotiable — burying foam is both a code violation and a practical problem (moisture, pest entry, frost damage). This is one of the most common ICF lot grading mistakes; double-check it before final landscaping.
Slope Specifications by Surface Type
Slopes vary by surface type and proximity to the foundation. The OBC minimum is the floor; good design exceeds it in most directions:
| Surface | Minimum slope | Maximum slope | Notes |
|---|---|---|---|
| First 1.8m around foundation | 2% (per OBC 9.12) | 10% | Critical zone. Lay down well-compacted soil and verify with laser level — not by eye. |
| Lawn/grassed areas (beyond 1.8m) | 2% positive flow | 15-20% before erosion concerns | Above 15% on grassed slopes, consider terracing, retaining walls, or hardscape solutions. |
| Driveway | 1% positive away from garage door | 6% from street to garage | Steeper grades create water funnelling toward house and vehicle hydroplaning issues. Trench drains at base if >5%. |
| Walkways and patios | 1% positive away from house | 2% | Should drain to lawn/garden area, not back toward foundation. Avoid level concrete slabs adjacent to foundation walls. |
| Window wells | Sloped to drain (drainage at bottom) | N/A | Must include drainage outlet connecting to weeping tile or independent drain. Don’t skip this — window wells with no drainage flood basements. |
| Terraced retaining walls | 3:1 (horizontal:vertical) | 2:1 maximum | For lots with significant elevation change. Engineering required for walls over 1.2m height per OBC. |
Verify slope with a laser level or builder’s level, not by eye. Eye estimates are unreliable below 5% slope, and the critical zone is 2% over 1.8m — well below where you can see the grade change. A digital site level confirms the actual slope and protects against expensive grading corrections later.
Drainage Tile and Stone
The foundation drainage system is required per OBC 9.14 and is critical for any basement below frost line in Ontario. Standard components:
Perforated drainage tile
100mm perforated PVC pipe (commonly called "weeping tile" though the historic clay tile name is outdated — modern systems use PVC with engineered perforations). Installed at footing elevation around the perimeter of the foundation, with perforations down or to the side per manufacturer specifications.
Drainage stone bedding
150mm of clean 19mm crushed stone (no fines) below, around, and above the drainage tile. Clean stone allows water to flow freely to the pipe; fines (sand and silt) clog the system over time. A geotextile filter fabric ("fabric sock") around the stone prevents soil migration into the drainage stone.
System slope
The drainage tile itself slopes 1% minimum (10mm per metre) toward the discharge point — either a sump pit (with pump for indoor discharge) or daylight discharge (where grade permits gravity flow to a swale or storm sewer connection).
Dimple drainage board
HDPE dimple membrane applied to the exterior face of waterproofed foundation walls. Creates a permanent air gap between soil and wall that allows any water reaching the wall to drain down to the foundation drainage tile rather than building hydrostatic pressure against the membrane. Particularly important for ICF foundations where the foam itself provides additional waterproofing margin but where you still want any water reaching the membrane to drain away rather than sit.
Discharge connection
Drainage tile must discharge to: storm sewer (urban lots, where municipal connection exists), sump pit with electric pump (interior discharge, typical when no storm sewer is available), or daylight discharge to a swale or surface drainage feature (rural and large-lot properties where grade permits gravity flow). Cannot discharge to sanitary sewer per OBC and municipal bylaws.
Below-Grade Waterproofing for ICF
Waterproofing is the primary defence against basement moisture. For ICF foundations, several systems are code-compliant and proven over time. The choice depends on site conditions, hydrostatic pressure expectations, and budget:
Self-adhered membrane systems
Rubberized asphalt or modified bitumen membranes applied directly to the exterior face of the ICF wall after concrete cures and bracing is removed. Most common system for Ontario residential ICF. Requires clean foam surface, primer in cooler temperatures, and careful overlap detailing (typically 50-75mm seam overlap). Apply before backfill; cannot be applied through soil contact.
Fluid-applied (liquid) membrane systems
Polymer-modified asphalt or polyurethane systems applied with sprayer or roller. Useful for complex shapes (window wells, pipe penetrations, intersecting walls) where sheet membranes are hard to detail. Cure time: 24-48 hours depending on humidity and temperature. Cold-weather application requires specialty formulations — standard products fail below 5°C ambient.
Bentonite clay panels
Composite panels with sodium bentonite that swells when wet to form a water-tight seal. Self-healing for minor punctures. Common for commercial and high-water-table applications; less common on Ontario residential due to higher material cost.
Combination: membrane + dimple board
Standard Ontario residential approach: self-adhered membrane on the wall + HDPE dimple drainage board over the membrane. The dimple board protects the membrane during backfill and creates the drainage path described in the previous section. This belt-and-suspenders approach is the cost-effective standard for typical residential ICF in Ontario.
What ICF’s integrated waterproofing means: Some ICF manufacturers offer waterproofing systems integrated with their block products. These can simplify installation but don’t eliminate the need for the foundation drainage system (OBC 9.14 requirement). The membrane and drainage tile work together — the membrane resists water, the drainage tile removes water before pressure builds. Both are required for proper performance regardless of brand.
Ontario Soil Considerations by Region
Ontario’s soil conditions vary dramatically by region. Lot grading approach should match the soil reality of your specific site:
Heavy Clay
GTA, Niagara, SW OntarioSlow drainage, holds water near foundation, can expand and contract with moisture. Foundation drainage system absolutely critical.
Drainage approachIncrease drainage stone bed to 300mm
Slope priorityHigh — water won’t soak in
Backfill materialFree-draining granular, not native clay
Regional examplesToronto, Mississauga, Brampton, Niagara, Hamilton
Sandy / Sandy Loam
Tiny Township, Simcoe, Georgian BayFast drainage, low water-holding capacity. Drainage less of a concern but erosion is — lots can wash if slopes are too steep with poor stabilization.
Drainage approachStandard 150mm stone bed sufficient
Slope priorityModerate — water soaks through quickly
Erosion controlSilt fences during construction, fast vegetation establishment
Regional examplesTiny Township, Wasaga Beach, Springwater, Penetanguishene, Tay
Bedrock / Shallow Rock
Canadian Shield, MuskokaExposed or shallow bedrock prevents standard footing-depth drainage. Specialized engineering required for foundation design and drainage routing.
Drainage approachSurface drainage critical, rock fissure considerations
FoundationConcrete footing pinned to rock or rock-bearing
ExcavationHammer or blast costs significantly higher
Regional examplesMuskoka, Parry Sound, Haliburton, Northern Ontario, parts of Eastern Ontario
Organic / High Water Table
Wetland areas, lakefrontSaturated soils, peat layers, or seasonal high water table. Requires geotechnical assessment and may require specialty foundation design.
Drainage approachEngineered system with pump backup
WaterproofingFull waterproofing required (not just damp-proofing)
PermitsConservation authority approval typically required
Regional examplesHolland Marsh, lakefront properties, river floodplains
For most ICF projects in Tiny Township, Wasaga Beach, Collingwood, and the broader Georgian Bay area, soils are typically sandy or sandy loam — favourable for drainage but requiring attention to erosion control and slope stabilization during the early grading phase. A geotechnical (soils) report is recommended for any lot with uncertain soil conditions, mandatory for waterfront and wetland-adjacent properties, and required by some municipalities for all custom residential construction. Cost: $1,500-$3,500 for typical residential geotechnical investigation.
Backfill Timing and Method
When and how you backfill against an ICF foundation affects both the wall’s structural integrity and the drainage system performance. Several rules:
Don’t backfill before concrete reaches design strength
Standard practice is minimum 7 days cure time before any soil contact with the foundation walls. Cold weather extends this; warm summer pours may reach design strength faster but should still be verified. Premature backfill can deflect or even fail ICF walls before the concrete has full strength to resist lateral soil pressure.
Don’t backfill before waterproofing
Waterproofing membrane must be installed on the below-grade portion of the foundation walls before backfill. Once soil is in place, you can’t access the wall surface to apply membrane. Dimple drainage board goes on after the membrane and before backfill.
Use appropriate backfill material
Free-draining granular fill is preferred for the first 600mm against the foundation wall. Native clay-heavy soils trap water against the foundation; granular fill allows water to drain to the perimeter drainage system. Above the first 600mm, native soil can typically be used if it’s not waterlogged.
Compact in lifts
Backfill in lifts of 200-300mm, compacted between lifts. Don’t dump 1.5m of soil all at once — the impact and compaction load can deflect walls before they’ve had time to brace against the soil pressure. Use lightweight compactors near the foundation; heavy plate compactors close to the wall can transmit shock loads.
Verify wall plumb after backfill
Check that ICF walls remain plumb (within 6mm vertical deviation over 2.4m height) after backfill completion. Any deflection during backfill should be flagged for engineering review before continuing construction. This rarely happens with proper procedures but is worth the verification step.
Lot Grading Certificate Workflow
Most Ontario municipalities now require a Lot Grading Certificate (LGC) for new residential construction. This is the formal verification that the lot has been graded in accordance with the approved site plan. Standard workflow:
Pre-construction LGC submission
A pre-construction LGC may be required at the permit stage, showing existing grades and proposed final grades on the site plan. Prepared by an Ontario Land Surveyor (OLS) or qualified civil designer. Existing grades captured by site survey; proposed grades calculated to provide positive drainage away from the building and to the property line or designated drainage feature.
Interim grade verification
Some municipalities require verification at the rough grading stage (after backfill complete but before final landscaping) to confirm grades are tracking the approved plan. Easier and cheaper to correct grade issues at rough grading than after sod and landscaping are in.
Final LGC certification
Required for occupancy in most Ontario municipalities. After final landscaping, the OLS or qualified professional re-surveys the lot and certifies that final grades match the approved plan. The certified LGC is submitted to the municipality as part of the occupancy permit documentation. Cost: $500-$1,500 for typical Ontario residential certification.
What happens if grades don’t match the approved plan: The municipality can withhold occupancy permits until grading is corrected. This becomes a significant problem if landscaping is already complete — corrections may require removing sod, regrading, and re-establishing landscaping. Best practice: verify grades match approved plan before landscaping starts, not after.
Common Ontario Lot Grading Issues
The most common lot grading problems on Ontario ICF projects in 2026 — and what to do about each:
Flat or reverse slope toward the foundation
The most common error. Builder eye-balls the grade and gets it wrong; final grade looks like positive flow but actually slopes back toward the foundation. Fix: Always verify with laser level. The 2% slope over 1.8m means a 36mm drop — not visible by eye.
Foam buried below finished grade
Finished grade ends up at or above the top of the foundation wall, burying ICF foam. Code violation per OBC 9.15.4.3 (150mm minimum clearance) and a practical problem for moisture, pest entry, and frost damage. Fix: Plan grade levels during architectural design, not after construction. Maintain 150mm minimum throughout the perimeter.
Window wells without drainage
Window wells installed without drainage outlet, leading to water collection during heavy rains. Eventually overtops into the basement. Fix: Every window well must include drainage to the perimeter drainage tile or independent drain. No exceptions.
Backfill too close to wall before cure
Excavation crews backfill before concrete reaches design strength to free up site space. Walls deflect. Fix: Enforce minimum 7-day cure before any backfill contact. Schedule excavation and backfill stages around concrete cure rather than crew availability.
Patios or walkways sloped toward house
Concrete pads or pavers installed level or back-sloping toward the foundation. Water pools at foundation during rain. Fix: All hardscape adjacent to foundation must have minimum 1% positive slope away. Cost a few hundred dollars more during construction; prevents years of basement moisture issues.
Downspouts discharging at foundation
Eavestroughs and downspouts collect roof water and discharge it directly at the foundation. Volume of water is substantial — far more than soil can absorb during a storm. Fix: Extend downspouts at least 1.8m from the foundation, or connect to the perimeter drainage system if designed for it, or direct to a rain garden / drywell.
No lot grading certificate at occupancy
Final LGC not obtained before requesting occupancy permit. Municipality withholds occupancy. Fix: Schedule the final LGC certification immediately after landscaping completion. The 1-2 week LGC process should be planned into the build schedule, not added on at the end.
Related ICFpro deep dives
More references on ICF foundations, waterproofing, and Ontario-specific considerations.
★ Foundation
ICF Foundation Complete Guide →
★ BasementICF Forms for Basements →
★ CodeICF & 2024 Ontario Building Code →
PermitsPermits for ICF Construction →
ServiceICF Foundation Contractor Ontario →
ServiceICF Foundations, Pools & Structures →
InstallICF Installation Methodology →
PrimerComplete ICF Building Primer →
ProcessHow ICF Construction Works →
LocalICF Construction in Tiny Township →
LocalICF Construction in Collingwood →
LocalICF Contractors Near Wasaga Beach →
ResilienceDurability and Resilience of ICF →
CostICF Cost Per Sq Ft Ontario 2026 →
DecisionIs ICF Worth It in 2026? →
DIYICF for Owner-Builders Ontario →
TradeICF for Home Builders →
TradeICF for General Contractors →
Got a Lot With Tricky Grading? Send Us the Site Plan.
30 years of Ontario ICF foundation work since 1995, across 300+ projects on every Ontario soil type from Tiny Township sand to GTA clay to Canadian Shield bedrock. We’ll review your site plan, flag drainage concerns, recommend the right waterproofing system for your soils, and coordinate with surveyors for the Lot Grading Certificate. Four certifications (Certified ICF Builder, R2000, Green Builder, Tarion-Approved). 7-year materials and workmanship warranty. Sister-site site preparation through Georgian Bay Siteworks.
FAQ: ICF Lot Grading
What slope does the OBC require around a foundation?
Per OBC 9.12, minimum 2% slope away from the foundation for the first 1.8m — that’s a 36mm drop over 1.8m (or 50mm over 2.4m). This is the absolute minimum; good practice is 3-5% in the critical zone close to the foundation, transitioning to gentler slopes farther away. Verify with a laser level or builder’s level, not by eye — a 2% slope is not visible without instruments.
What’s the minimum clearance from grade to top of ICF foundation wall?
Per OBC 9.15.4.3, minimum 150mm clearance between finished grade and the top of any below-grade foundation wall. For ICF this is critical because the foam panels are right at grade level if the clearance isn’t maintained — burying foam invites moisture wicking, pest entry, and frost damage. This is non-negotiable and one of the most common ICF lot grading mistakes.
Is EPS foam waterproof?
No — EPS is water-resistant but NOT waterproof. Closed-cell EPS resists water absorption and doesn’t support mould growth, but sustained hydrostatic pressure will eventually find paths through joints, around penetrations, and at the foundation-to-footing interface. The waterproofing membrane is what keeps your basement dry, not the foam itself.
What drainage system does the OBC require around foundations?
Per OBC 9.14, foundation drainage is required where the basement floor is below grade. Standard system: 100mm perforated drainage tile at footing level, surrounded by 150mm of clean 19mm drainage stone, wrapped in geotextile filter fabric, sloped 1% minimum toward a sump pit or daylight discharge. Cannot discharge to sanitary sewer.
How long should concrete cure before backfilling against ICF foundation walls?
Minimum 7 days cure time before any soil contact with foundation walls, longer in cold weather. Premature backfill can deflect or fail ICF walls before concrete has full strength to resist lateral soil pressure. Reputable contractors enforce this timing; pressure from excavation crews to backfill earlier is a red flag.
What about Tiny Township and Georgian Bay area sandy soils?
Sandy soils common in Tiny Township, Wasaga Beach, Springwater, Penetanguishene, and Tay are favourable for drainage — water moves through quickly, reducing hydrostatic pressure against foundations. Standard 150mm drainage stone bed is usually sufficient. Erosion control matters more than drainage on these sites: silt fences during construction, fast vegetation establishment after grading.
What about clay soils in the GTA?
Heavy clay soils in Toronto, Mississauga, Brampton, Niagara, and parts of Southwestern Ontario need enhanced drainage approach: increase drainage stone bed to 300mm (vs standard 150mm), use free-draining granular fill for first 600mm of backfill against the foundation (not native clay), and verify the perimeter drainage tile slope and discharge before backfill. Clay holds water against foundations; the drainage system is what removes it.
Do I need a Lot Grading Certificate in Ontario?
Yes — most Ontario municipalities require an LGC at permit stage and again at pre-occupancy. Prepared by an Ontario Land Surveyor (OLS) or qualified civil designer. Pre-construction LGC submitted with permit application; final LGC required before occupancy. Cost: $500-$1,500 for typical residential certification. Allow 1-2 weeks in your build schedule for the final LGC process.
What waterproofing system should I specify for ICF in Ontario?
Standard Ontario residential approach: self-adhered membrane on the wall + HDPE dimple drainage board over the membrane. Several code-compliant manufacturers offer systems proven over time. For high water table sites or wetland-adjacent properties, full waterproofing (not just damp-proofing) is required, with bentonite panels or fluid-applied systems as alternatives. Combination of membrane + dimple board + perimeter drainage tile is the cost-effective belt-and-suspenders approach.
What happens if final grading doesn’t match the approved site plan?
The municipality can withhold the occupancy permit until grading is corrected. This becomes expensive if landscaping is complete — corrections may require removing sod, regrading, and re-establishing landscaping. Best practice: verify grades match the approved plan at the rough grading stage before landscaping starts. Get an interim survey if the municipality offers one. Corrections at rough grading cost hundreds; corrections after landscaping cost thousands.
